Pièces détachées pour tous les systèmes de métrologie optique IVS

Comme nous possédons une forte expertise dans nos outils, nous offrons à nos clients toutes les pièces détachées utilisées dans nos modèles IVS (de la plus ancienne IVS120 au dernier modèle l’IVS200) et la possibilité d’utiliser nos compétences pour remettre à neuf les pièces partagées avec d’autres équipementiers.

Vous pouvez trouver la liste des pièces que nous pouvons fournir, remises à neuf avec garantie dans le catalogue ci-dessous :
Manufacturer Source Manufacturer Part # Sub Assembly Number Description Compatible IVS System Image

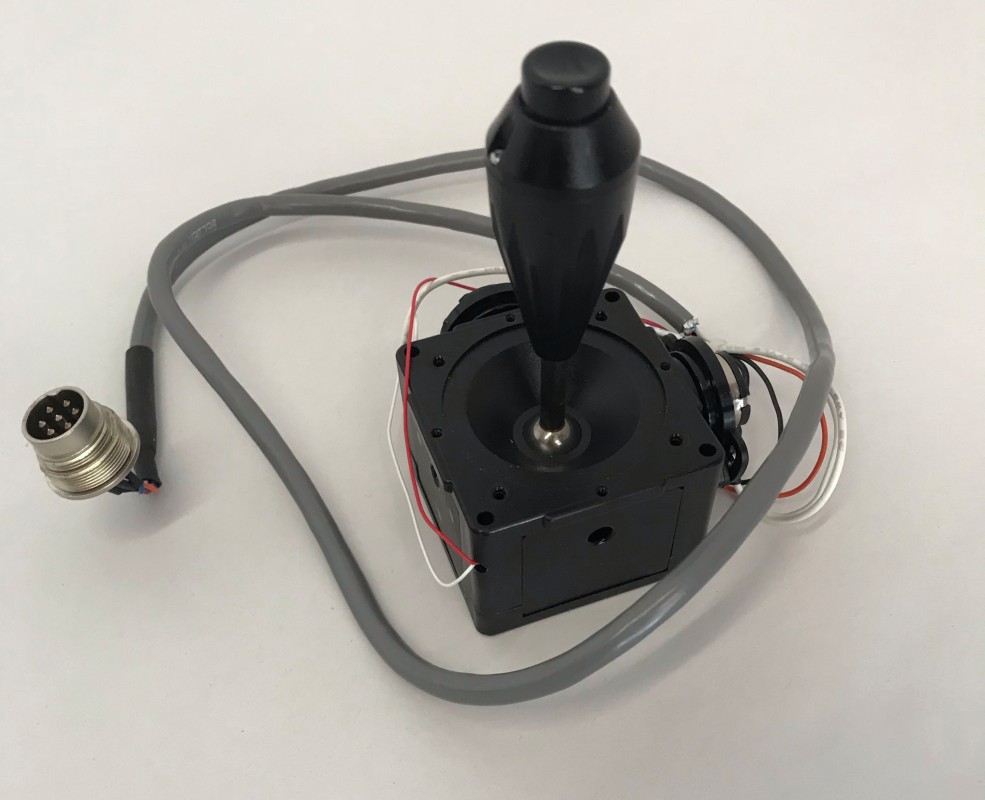

MAIN FRAME0001-00852-00ASSY, Joystick120/130/135/155/165

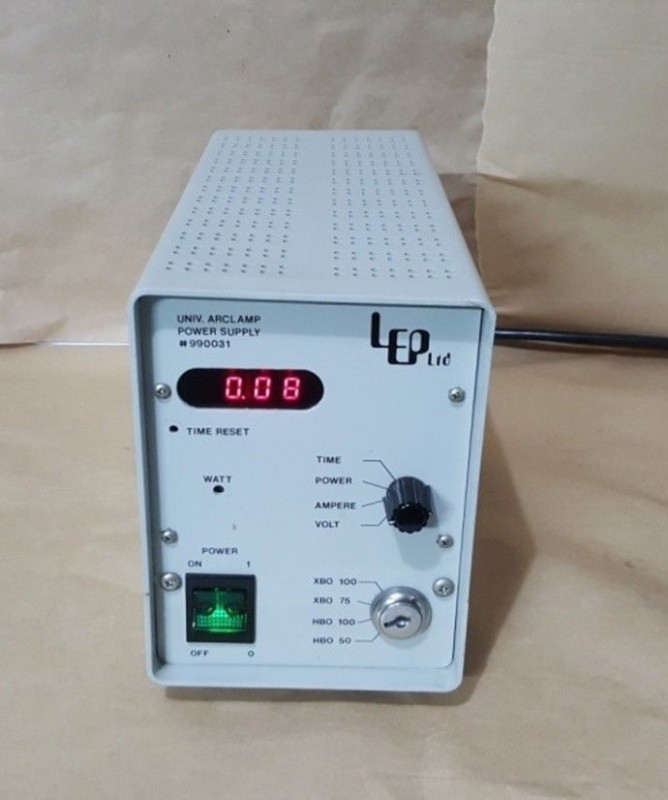

Ludl990034MAIN FRAME0002-00040-00Lamp Power Supply 12 volt120/130/135/155/165
MAIN FRAME0260-00010-00Focus Encoder Wheel120/130/135/155/165

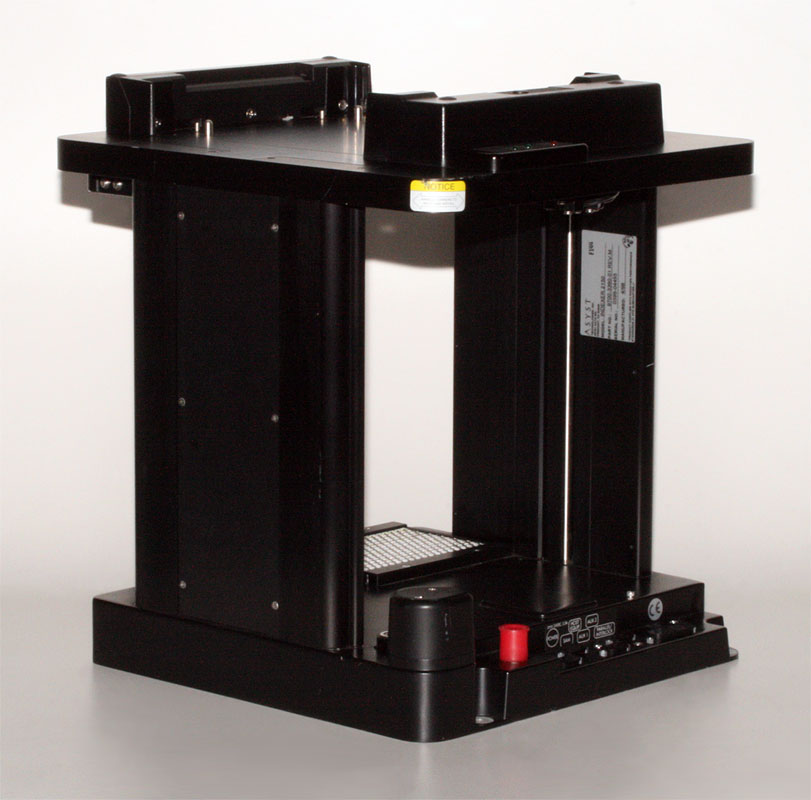

SMIF INDEXER 8"120/130/135/155/165

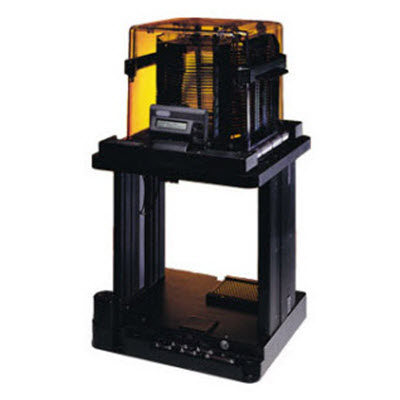

SMIF INDEXER 6"120/130/135/155/165
IVS COMPUTER0004-00017-00Controller, GSI-21 EIDE120/130/135
IVS COMPUTER0004-00023-00Controller,16 Bit ISA EIDE120/130/135
IVS COMPUTER0010-00061-00Flat Panel Monitor Upgrade Kit120/130/135

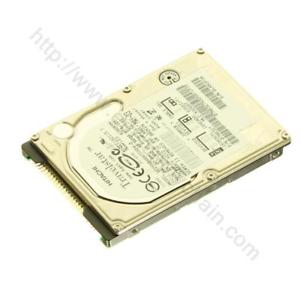

IVS COMPUTER0004-00015-00Hard Drive 40G120/130/135
IVS COMPUTER0004-00015-00Hard Drive 40G with ghost120/130/135
DigicomIVS COMPUTER0002-00034-00PCB, Digital I/O Eight Port - Digicom120/130/135/155
DigicomIVS COMPUTER0002-00034-01PCB, Digital I/O Eight Port - Digicom New155/165/185
GalilIVS COMPUTER0002-00156-00PCB, Galil - Autofocus PCB120/130/135/155/165
MutechIVS COMPUTER0002-00345-00Video Digitizer PCB Mutec165/185
MatroxIVS COMPUTER0015-00025-00PCB, Matrox 4 board set- EISA120/130
MatroxIVS COMPUTER0015-00116-00PCB, Matrox 4 board set- ISA135/155
IVS COMPUTER0002-00166-00Power Supply Computer, AT130/135

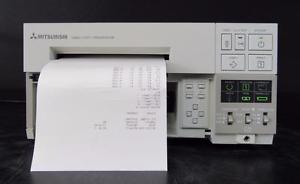

MitsubishiP68uPRINTER THERMAL0004-00005-00Printer - Mitsubishi120/130/135
LEICA INS2000 COMPUTER0001-00353-00ASSY, Front Surface Focus 120/130/135/155/165
LEICA INS2000 COMPUTER0001-00389-00ASSY,Lamp housing120/130/135/155/165
LEICA INS2000 COMPUTER0001-00008-00ASSY,PCB,Pneumatic Control120/130/135/155/165

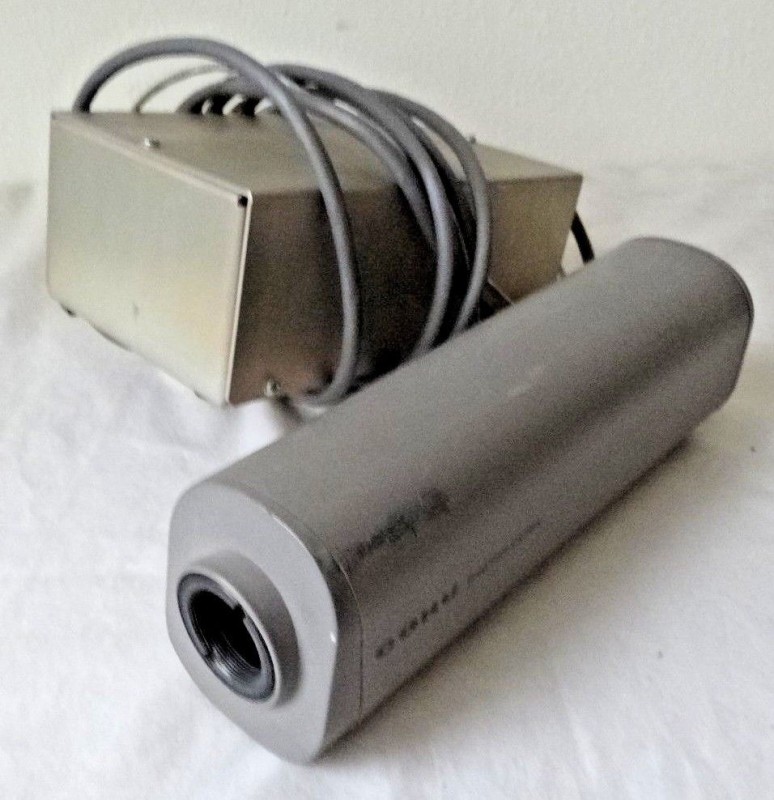

Cohu4115LEICA INS2000 COMPUTER0300-00107-00COHU Camera, with power supply120/130/135/155
LEICA INS2000 COMPUTER0010-00048-00LEICA Aperture Assembly120/130/135/155/165
LEICA INS2000 COMPUTER0180-00008-00Halogen Lamp with Tab, 12V 100W120/130/135/155/165
KLALEICA INS2000 COMPUTER0002-00203-00Laser Focus Module130/135/155
KLALEICA INS2000 COMPUTER0001-00363-00Leica Microscope Controller120/130/135/155/165

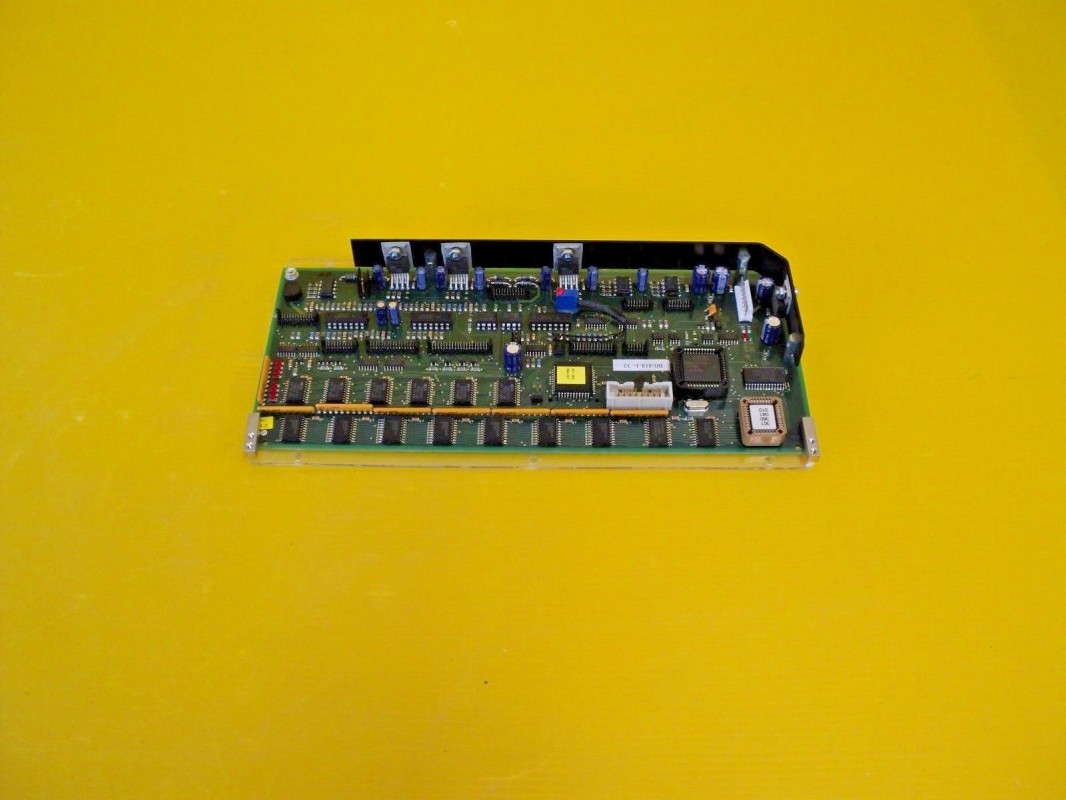

KLALEICA INS2000 COMPUTER0002-00274-00Leica Basic Board -Old120/130/135/155/165
KLA301-360.040-007/00LEICA INS2000 COMPUTER0002-00242-00Leica Basic Board -New120/130/135/155/165
KLA301-368.115-007/03LEICA INS2000 COMPUTER0002-00245-00Leica Master Board120/130/135/155/165
LEICA INS2000 COMPUTER0002-00335-00Leica Turret Motor Assembly120/130/135/155/165
LEICA INS2000 COMPUTER0300-00150-00GEN2 TURRET MOTOR Kit - Motor + Basic 120/130/135/155/165

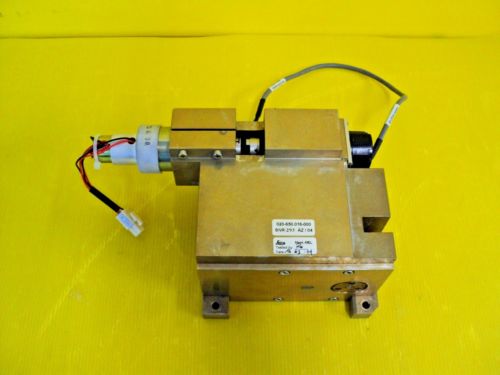

KLA020-650-016-000LEICA INS2000 COMPUTER0002-00289-00Leica Microscope Z Drive120/130/135/155/165
KLA11 020 650 018 000LEICA INS2000 COMPUTER0300-00106-00Leica Turret Nosepeice 6 FOLD120/130/135/155/165
CYBQROBOT PCB, Prealigner Motor Control Driver130/135/155/165
CYBQROBOT0002-00206-00PCB, Prealigner Digital/Analog IO130/135/155/165

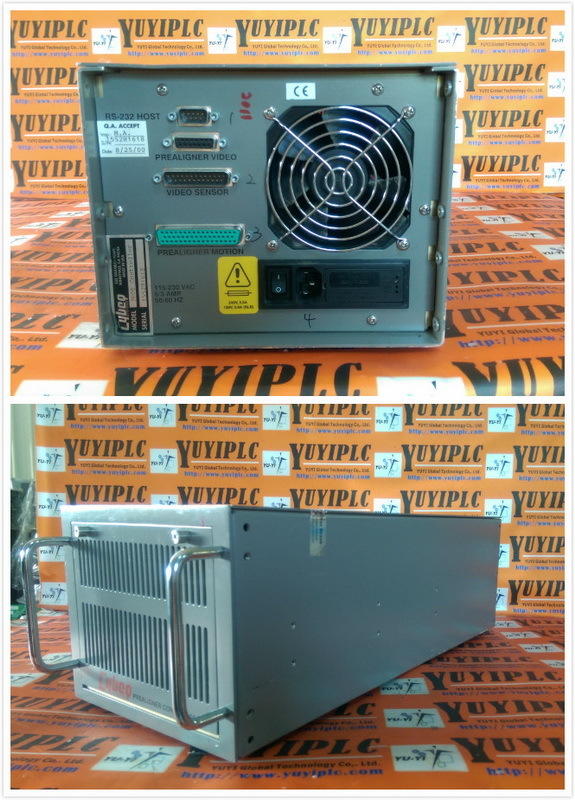

CYBQ3000ROBOT0002-00256-00Prealigner Cybeq 3000130/135

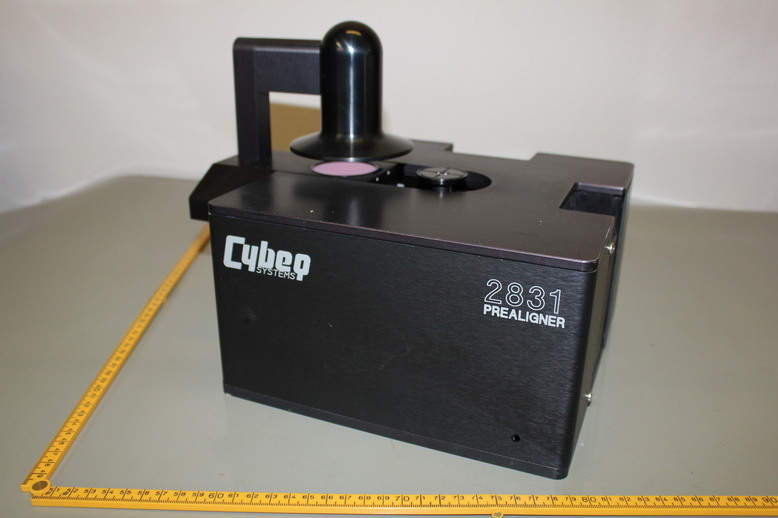

IDEROBOT0002-00030-00Prealigner Cybeq 2831120

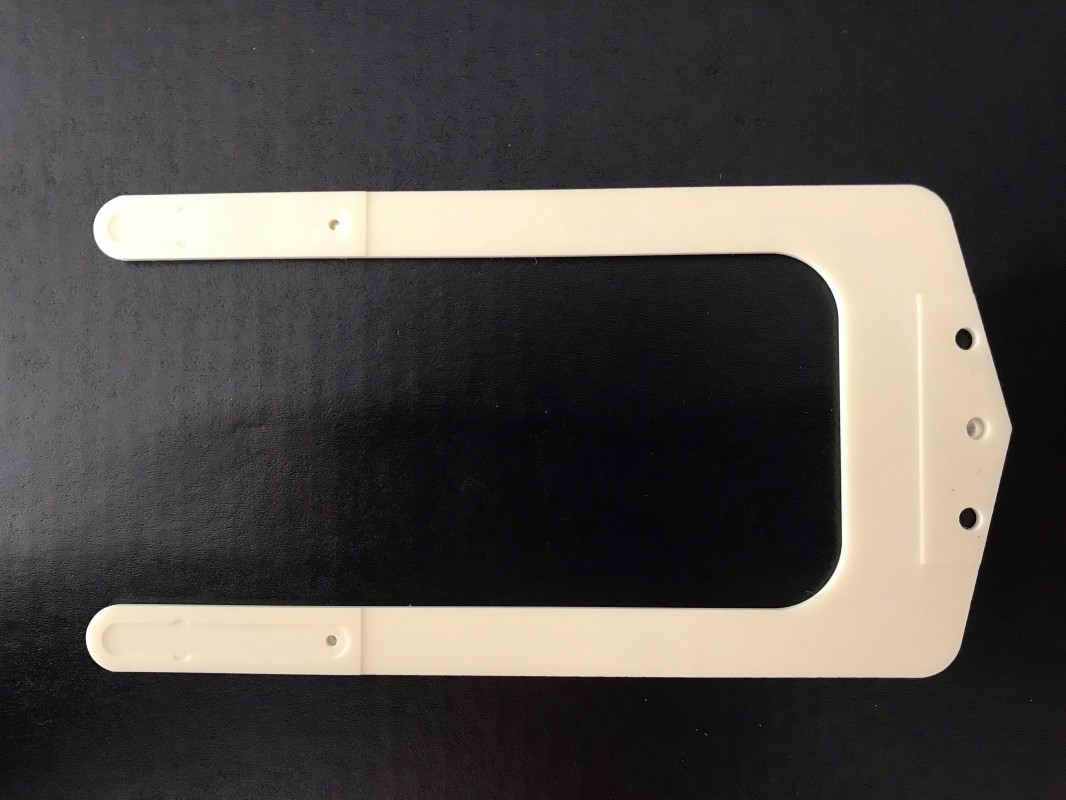

2550ROBOT0003-02146-01End Effector - Cybeq Robot model 6100 - Ceramic120/130/135
2550ROBOT0003-02146-01End Effector - IDE Robot ROB310 - Ceramic 135/155/165/185/200

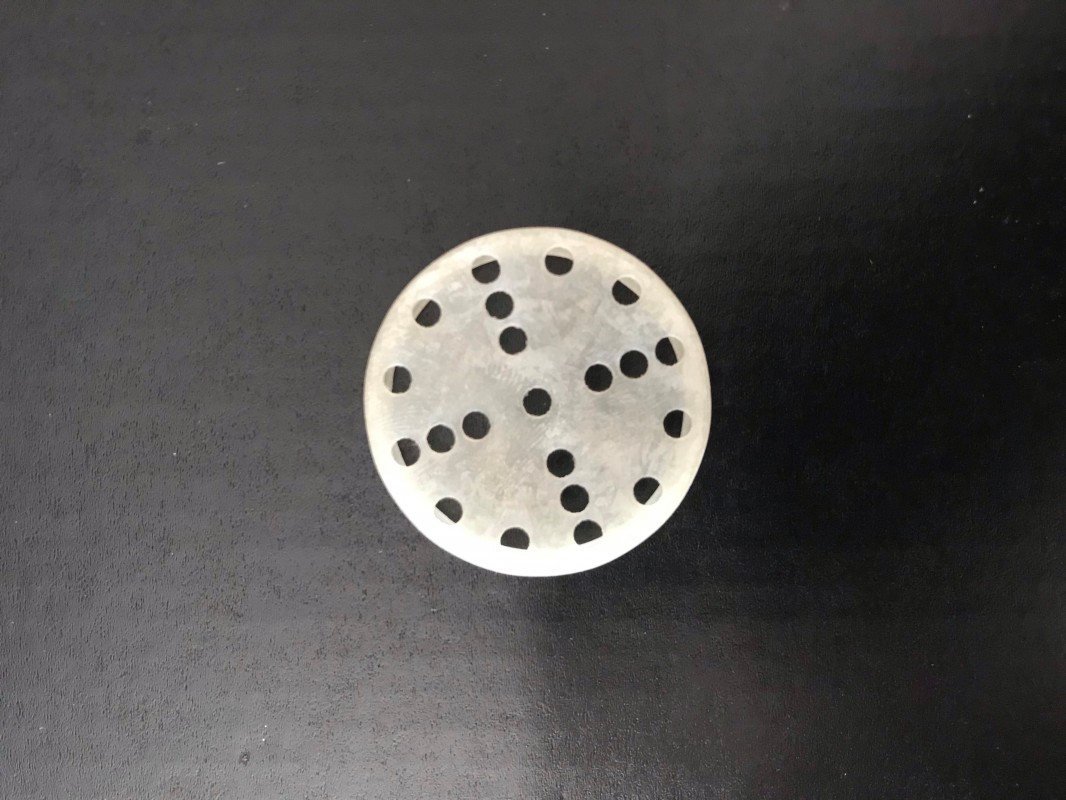

IDEROBOT0290-00050-00Gasket, Prealigner Chuck, CYBEQ120/130/135
CYBQROBOT0002-00169-00PCB, ASM CPU Cybeq Robot120/130/135
CYBQROBOT0002-00164-00PCB, CPU Cybeq Prealigner130/135
CYBQROBOT0002-00163-00PCB, Motor Controller Cybeq P130/135
CYBQROBOT0002-00135-00PCB, Prealigner Motor Driver 120
CYBQROBOT0002-00167-00PCB, Prealigner Motor Driver - 2831120/130/135
WesternServoROBOT0002-00134-00PCB, R1/R2/Theta Amplifier120/130/135
ROBOT0002-00131-00PCB, Robot R1/R2 Servo Control120/130/135
WesternServoROBOT0002-00130-00PCB, Robot Z Axis Amplifier120/130/135
ROBOT0002-00132-00PCB, Robot Z/Theta Servo Control120/130/135
ROBOT0002-00033-00PCB, Servo Amplifier120/130/135
CYBQROBOT0002-00168-00PCB, DATA ACQUISITION CYBEQ PR120
CYBQ3000ROBOT0002-00256-01CYBEQ Prealigner Controller 1/2 rack130/135
CYBQROBOT0002-00029-01CYBEQ Robot Controller 1/2 Rack130/135
CYBQROBOT0001-00038-00CYBEQ Robot and Prealigner Controller 6100120

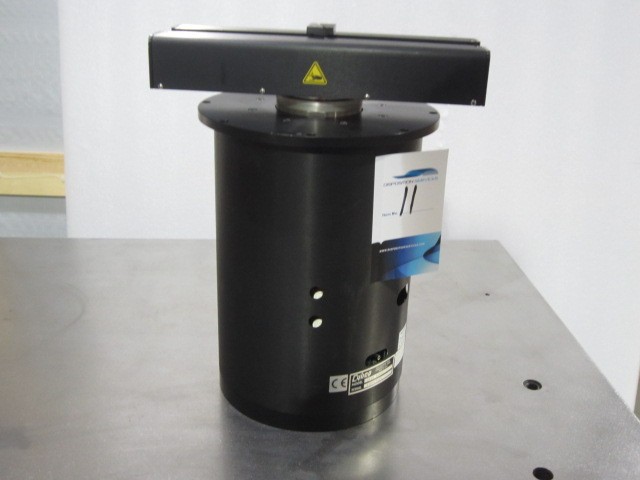

IDE ROBOT0002-00029-00CYBEQ ROBOT 6100120/130/135
IDE 0123-9300-02ROBOT0002-00318-02IDE SPA 310 Controller135/155/165/185/200

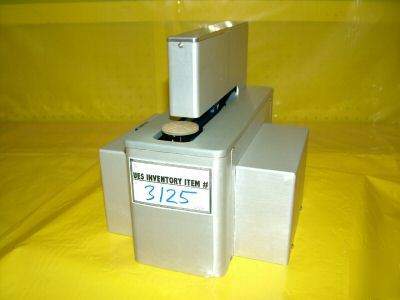

IDE0123-6000ROBOT0002-00318-01IDE SPA 310 Prealigner155/165/185/200
IDE 0125-1200-41ROBOT0002-00323-02IDE ROB 310 Controller155/165/185/200
IDE 0124-3507-06ROBOT0002-00323-01IDE ROB 310 Robot155/165/185/200
Metralight14BROBOT0002-00339-01Transparent PA Head AlignX14BALL
INSPSTAGE0001-00786-00ASSY, Vacuum control box - Hi flow120/130/135/155/165

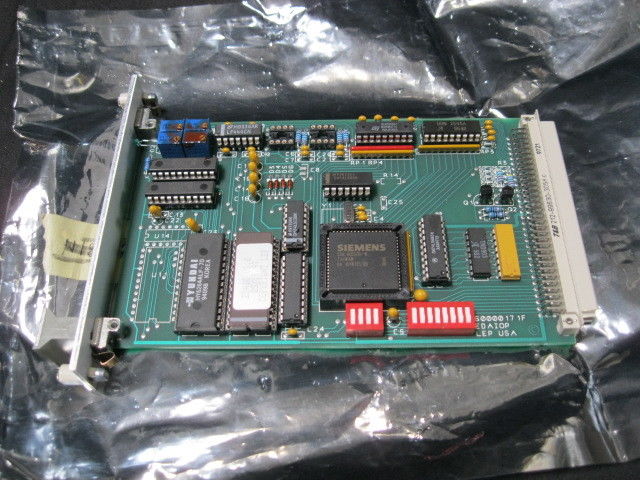

Ludl73000600STAGE0002-00112-00D/A Card, Stage Controller120

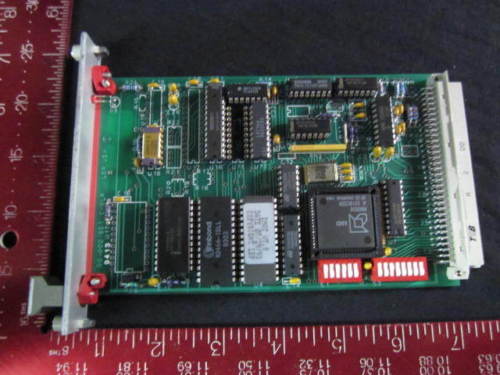

Ludl73000500STAGE0002-00128-00PCB X/Y Stage Controller MAC2000120

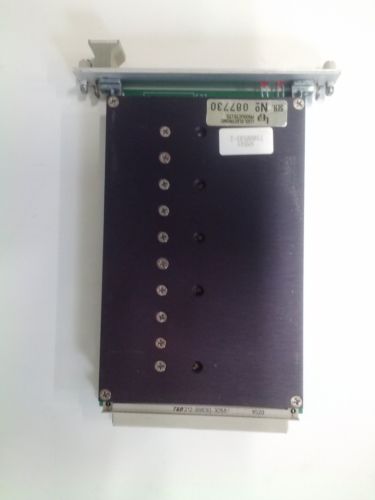

Ludl73000503STAGE0002-00129-00PCB, X/Y Motor Drive MAC2000 120
EMULEX / ULTRA:LINKSTAGE0002-00154-00PCB,GEM/SECS Interface120/130/135/155/165

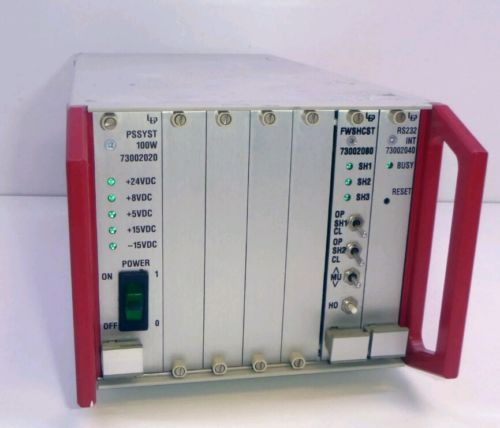

Ludl73002020STAGE0002-00207-00PCB,Power Supply MAC 2002130/135/155/165
Ludl73002050STAGE0002-00205-00PCB MAC 2002 XY Stage AMP Board130/135/155/165
Ludl73002061STAGE0002-00206-00PCB, MAC 2002 Digital/Analog IO130/135/155/165
73002040STAGE0002-00208-00PCB,RS232 Interface MAC 2002130/135/155/165
Ludl99s003STAGE0002-00039-00Stage - Ludl Black Anodized120/130
Ludl99s923STAGE0002-00215-00Stage - Ludl S clear Anodized135
970501STAGE0002-00201-00Mac 2002 Controller - fully populated135/155/165/185
